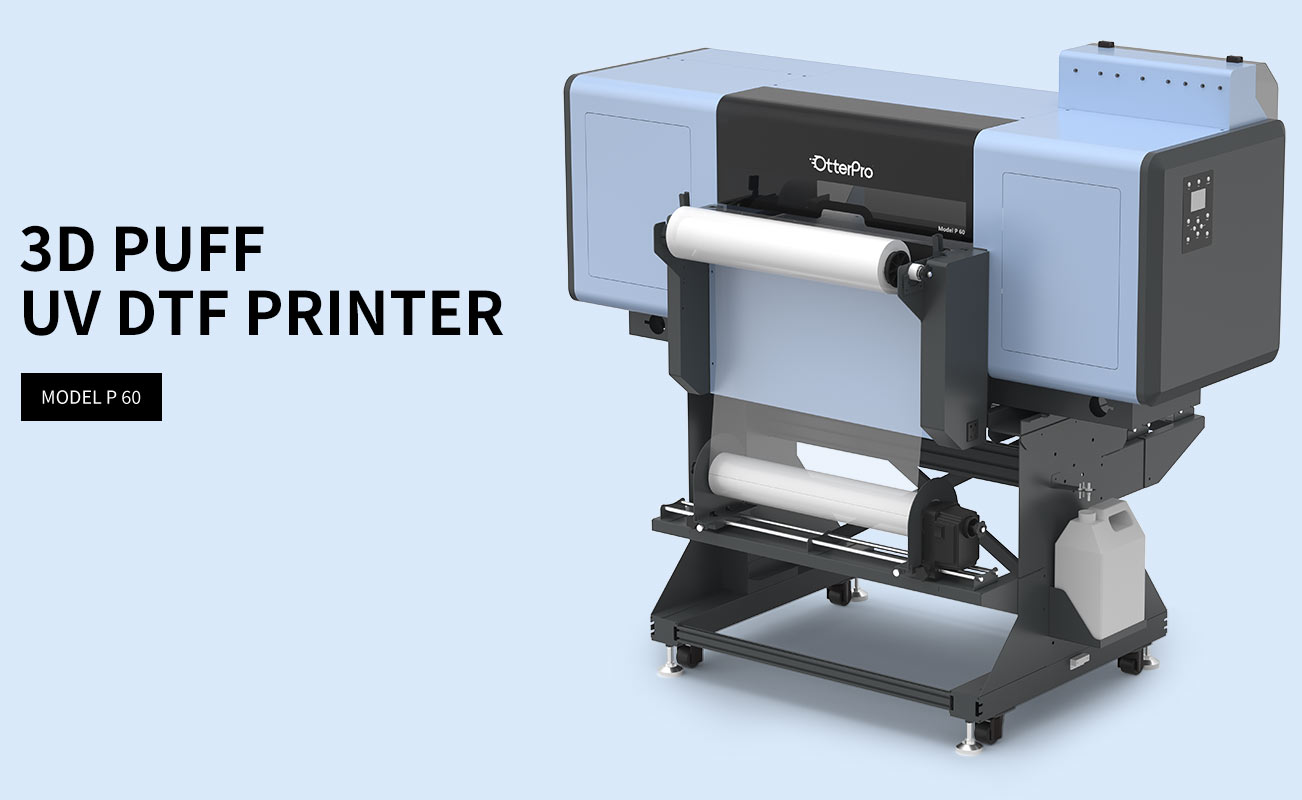

3D UV DTF
Printer
3D Raised Texture Logo Patch for Sportware, Cap, Bag & More
Blended Fabric
100% Cotton
Polyester
Faux Leather
WATCH VIDEO

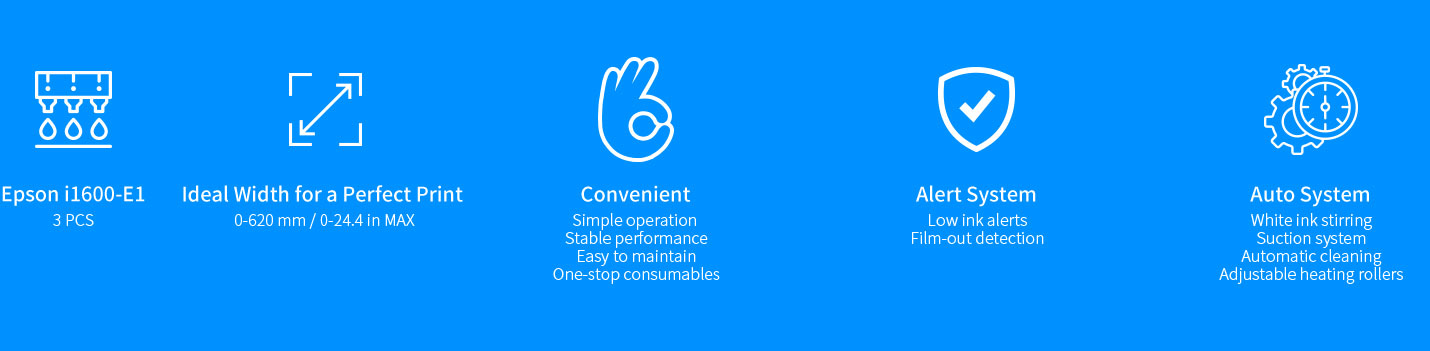

i1600-E1
3 PCS
Ideal Width for a Perfect Pint
0-620 mm / 0-24.4 in MAX
Convenient
Simple operation
Stable performance
Easy to maintain
One-stop consumables

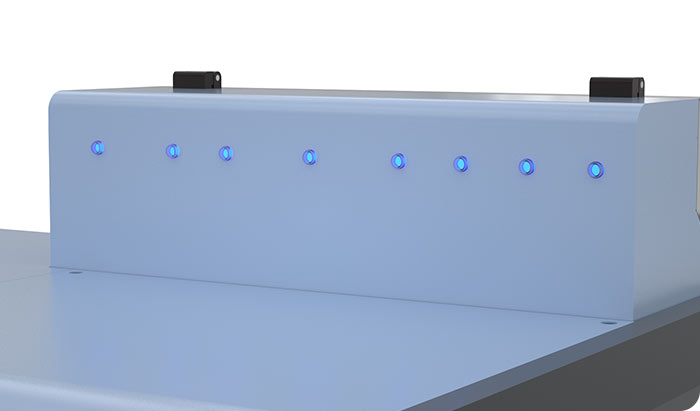

Alert System
Low ink alerts
Film-out detection
Auto System
White ink stirring
Suction system
Automatic cleaning

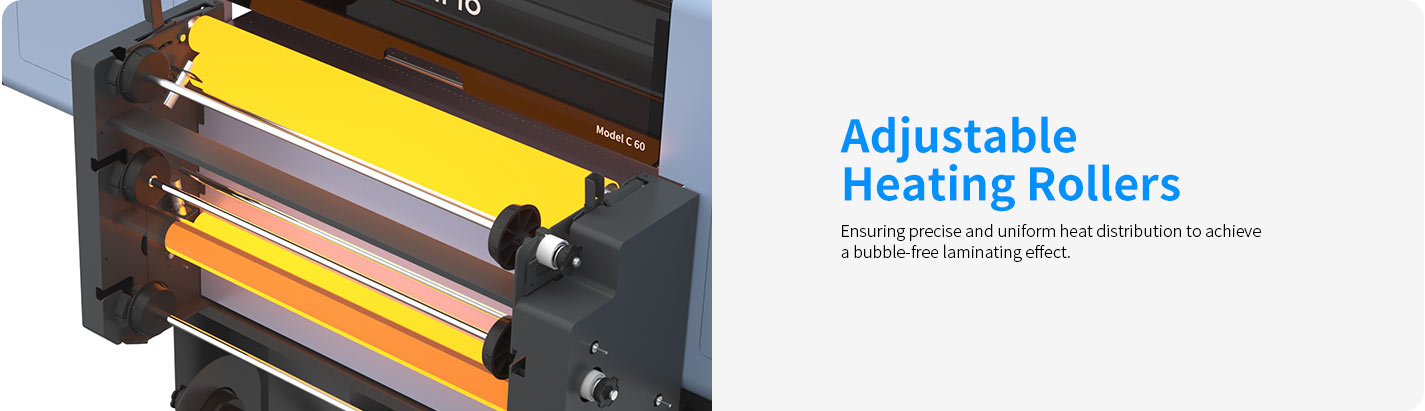

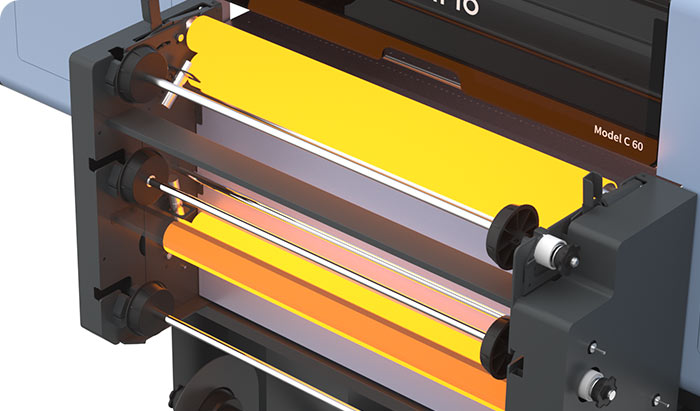

Adjustable heating rollers

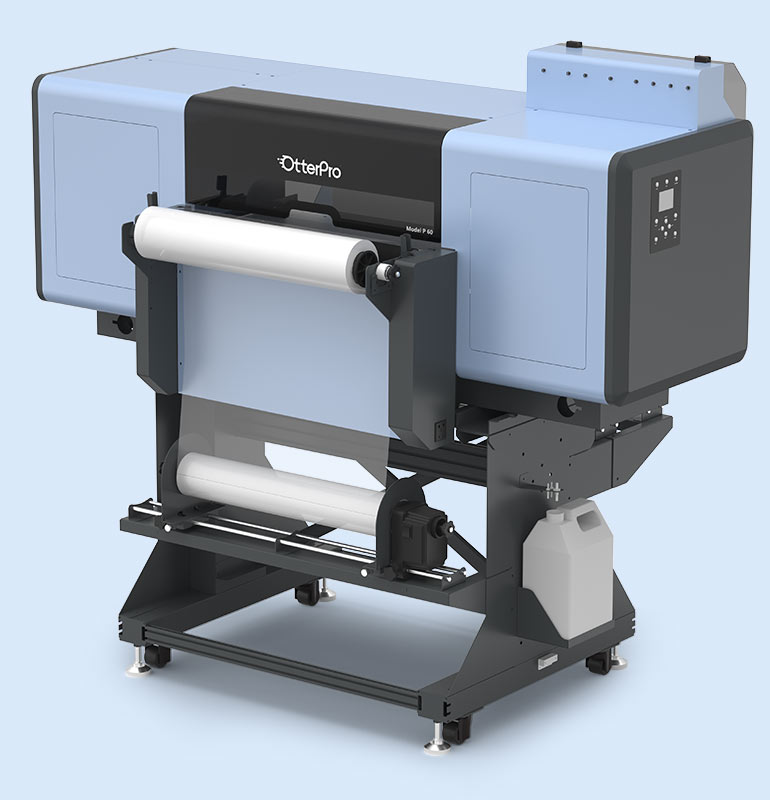

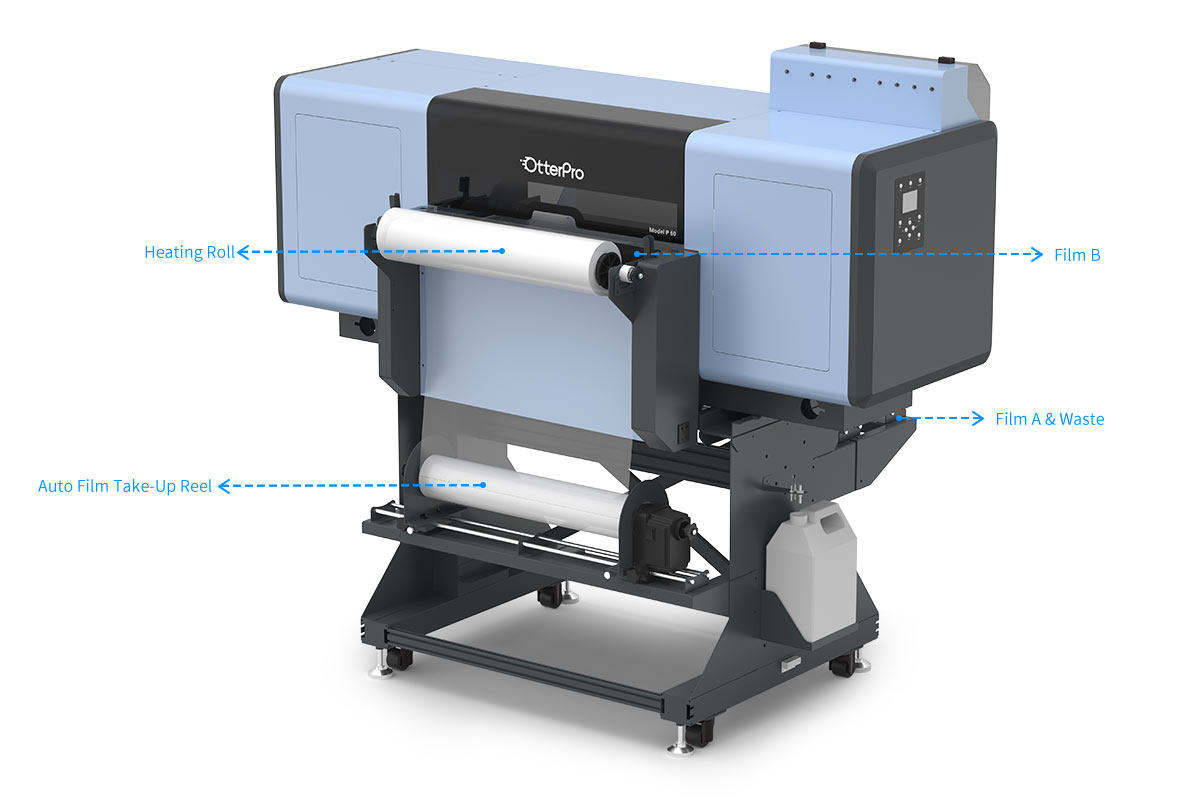

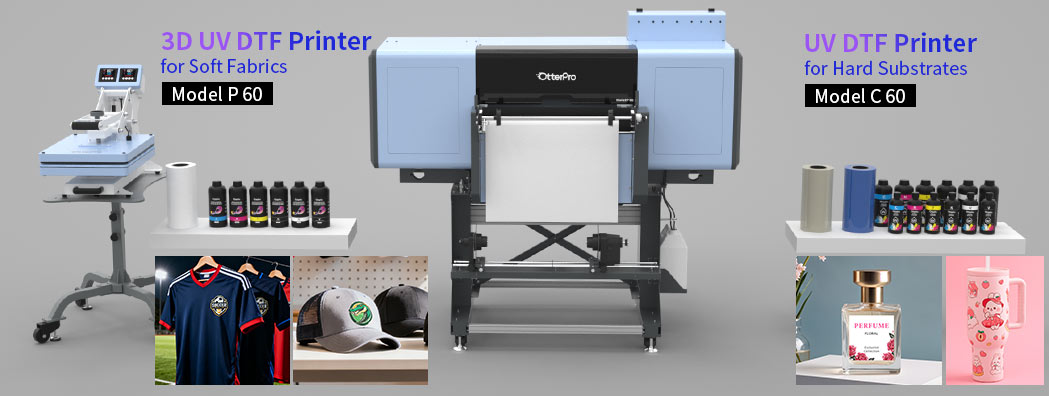

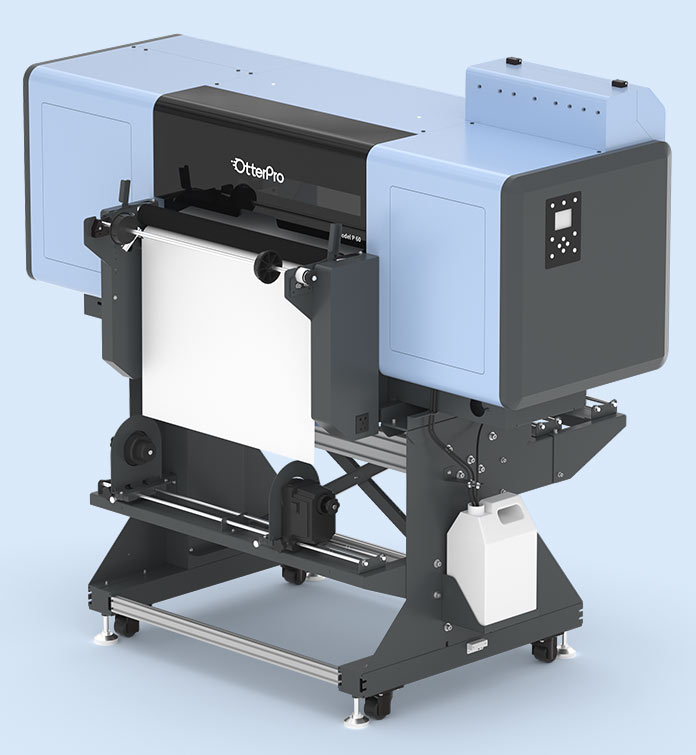

Why Choose the Model P 60?
1 printer 2 solutions! This is a 2-in-1 UV DTF printer, there are 2 solutions available for both soft fabrics and hard substrates.
Simply choose the right one for your business, pair it with our specialized ink and film, and achieve exceptional results.
Compatible with
Most Fabrics
3D Raised Texture
Soft & Flexible
Durable &
Wash-resistant
Vivid Color Transfer
Waterproof

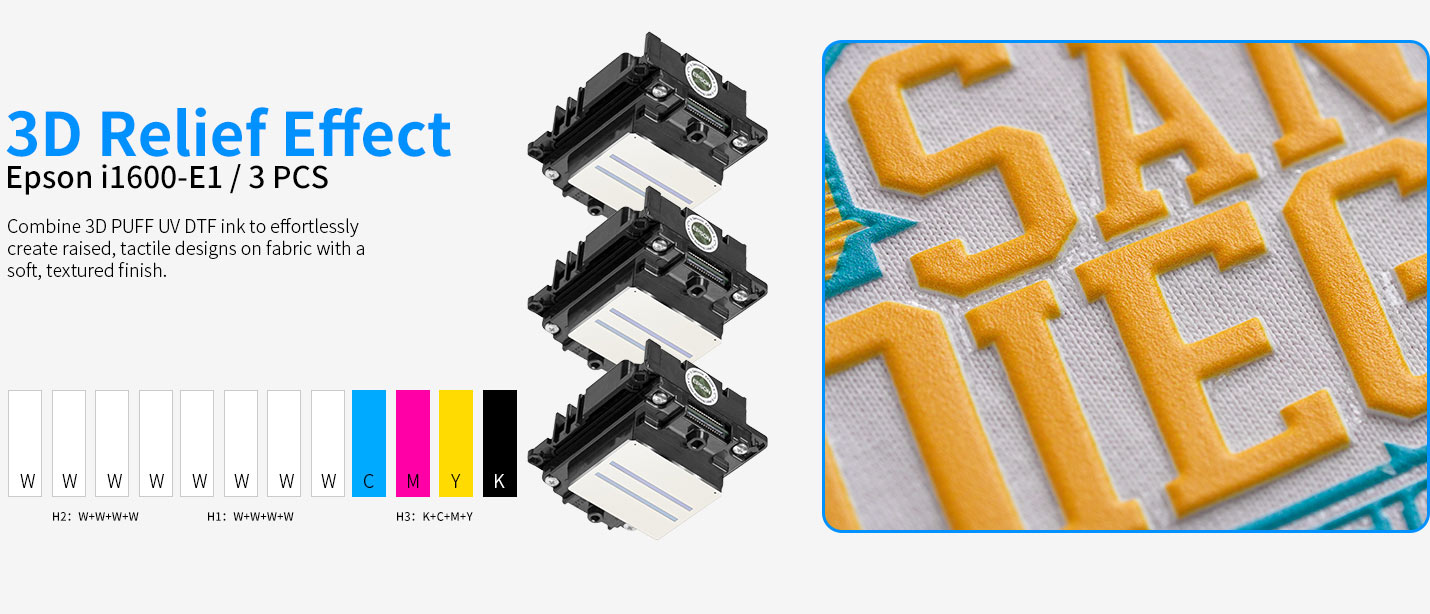

3D Relief Effect
i1600-E1 / 3 PCS
Combine 3D UV DTF ink to effortlessly create raised, tactile
designs on fabric with a soft, textured finish.

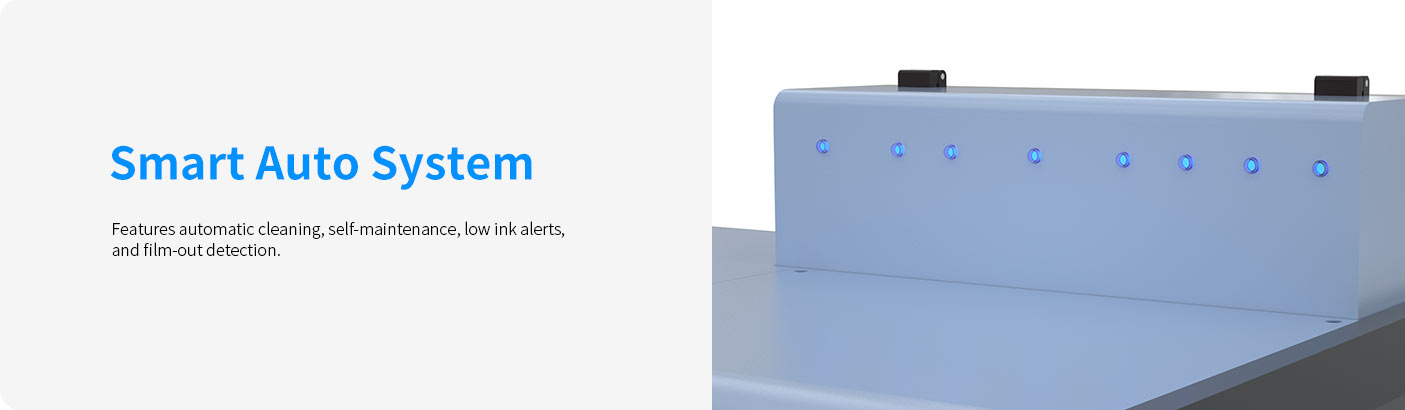

Smart Auto System
Features automatic cleaning, self-maintenance, low ink alerts,
and film-out detection.

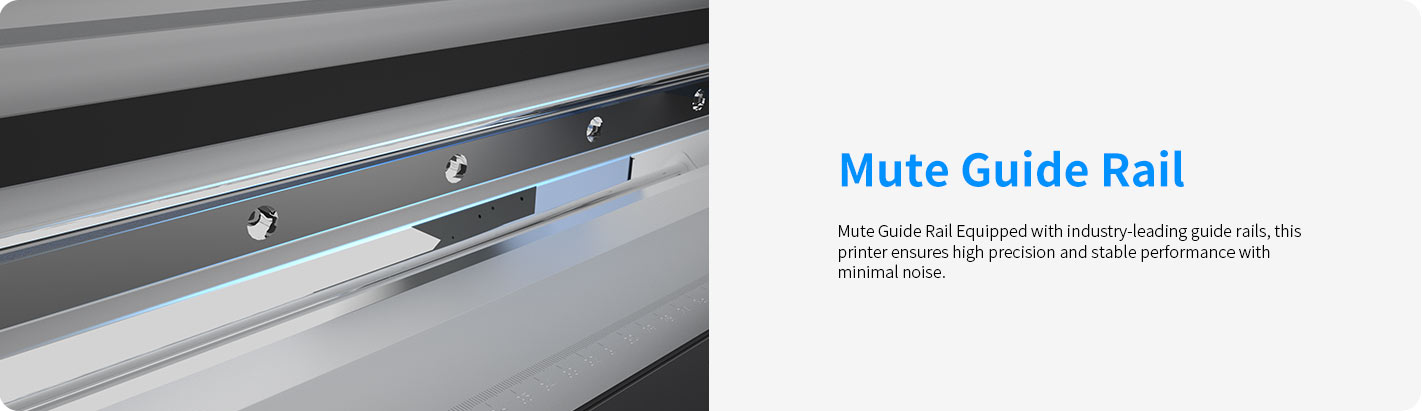

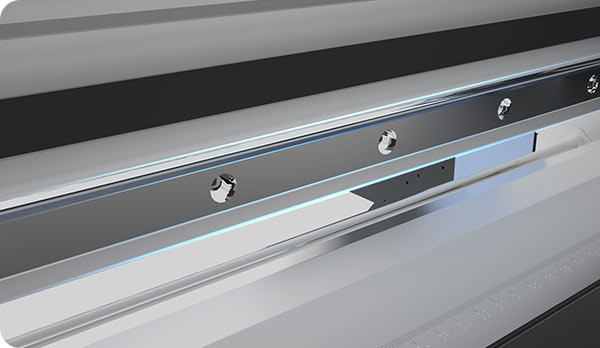

Mute Guide Rail
Mute Guide Rail Equipped with industry-leading guide rails, this
printer ensures high precision and stable performance with
minimal noise.

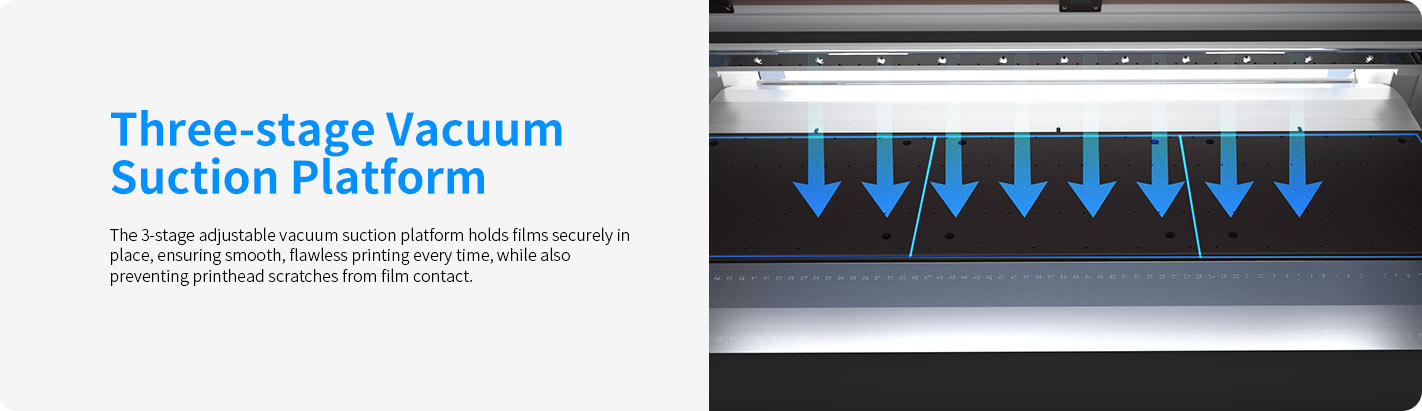

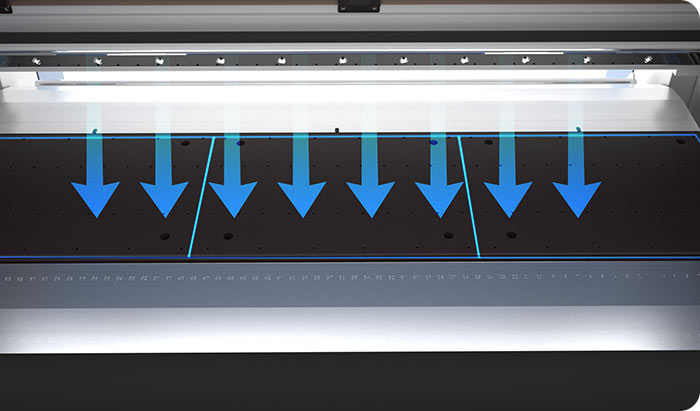

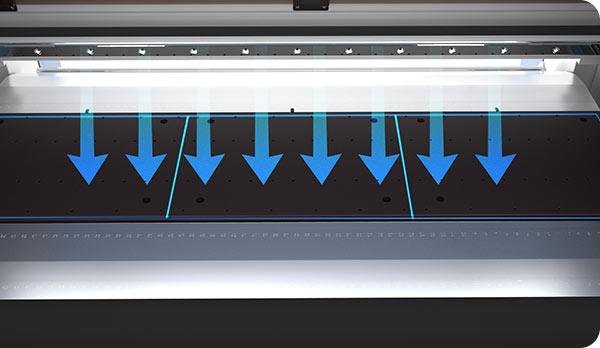

Three-stage Vacuum
Suction Platform
The 3-stage adjustable vacuum suction platform holds films securely in
place, ensuring smooth, flawless printing every time, while also
preventing printhead scratches from film contact.
Auto White Ink
Circulation
Equipped with two peristaltic pumps, this system keeps the ink
in constant motion, reducing the risk of white ink clogging and
extending the service life of your UV DTF printer.

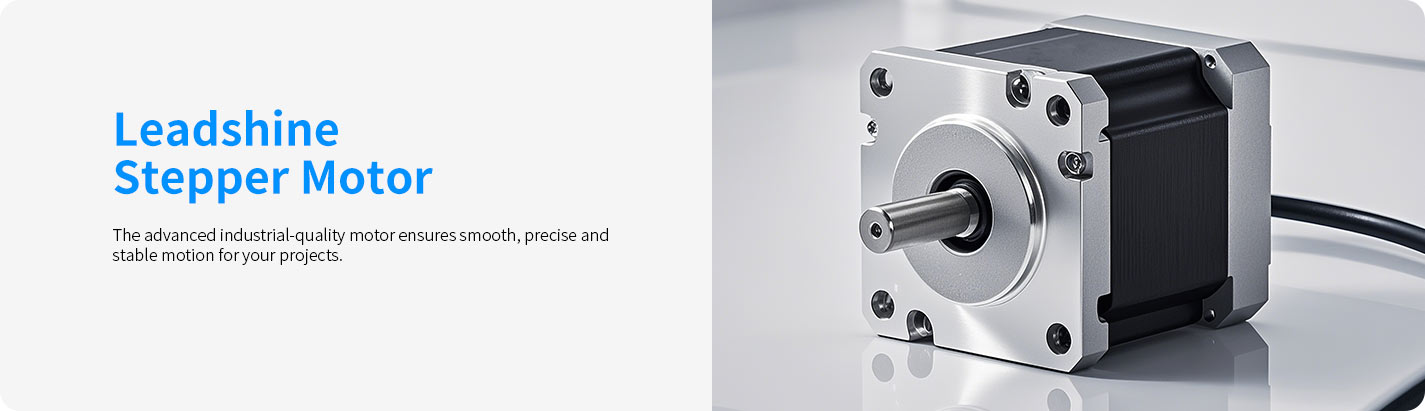

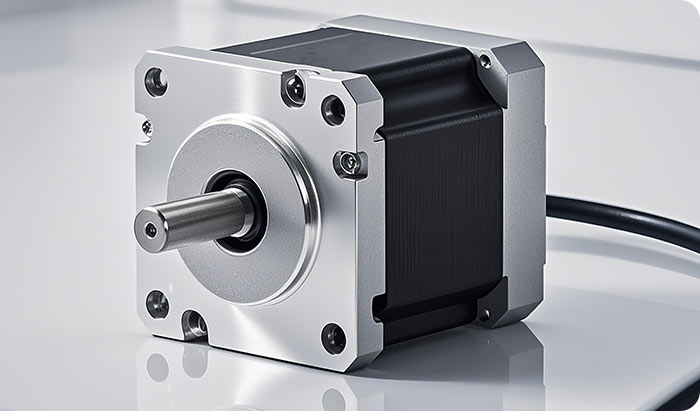

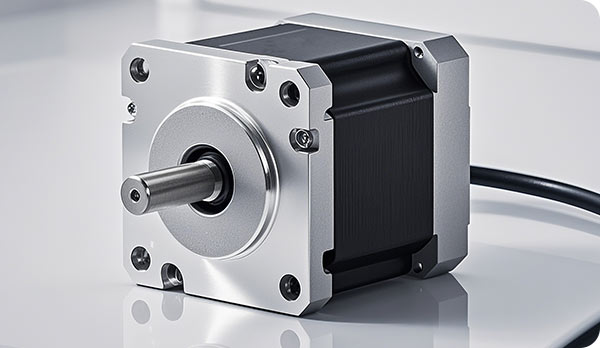

Leadshine
Stepper Motor
The advanced industrial-quality motor ensures smooth, precise and
stable motion for your projects.

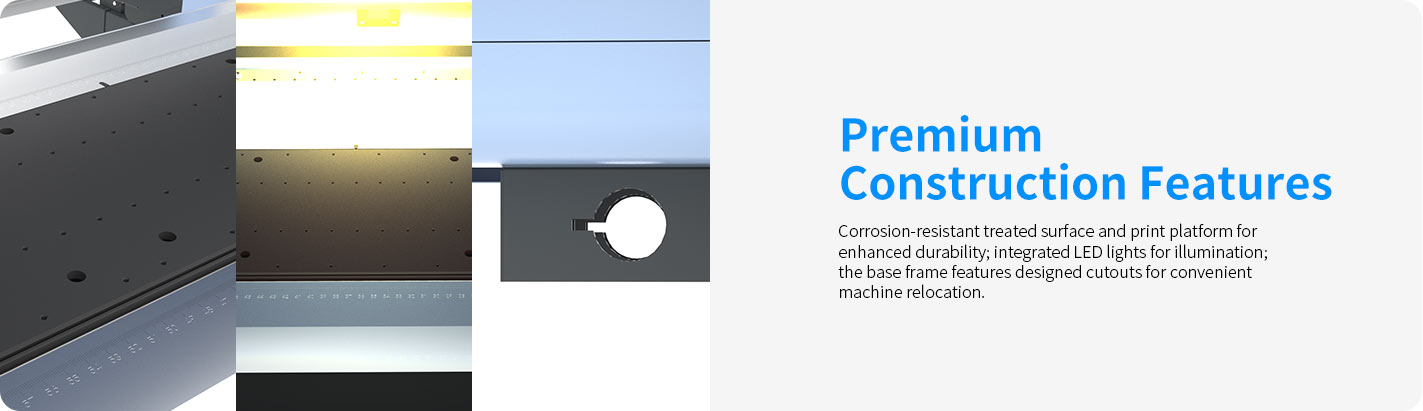

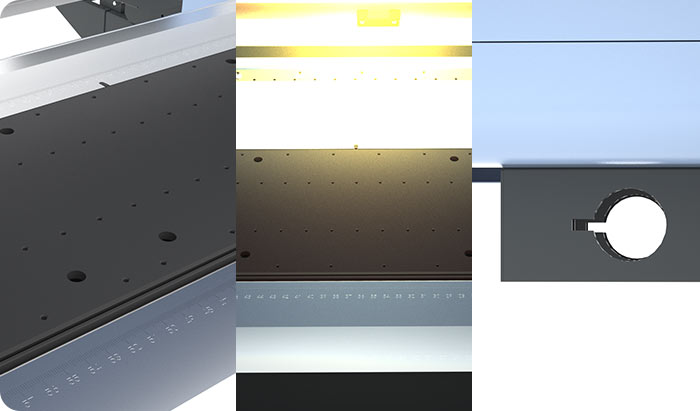

Premium
Construction Features
Corrosion-resistant treated surface and print platform for
enhanced durability; integrated LED lights for illumination;
the base frame features designed cutouts for convenient
machine relocation.

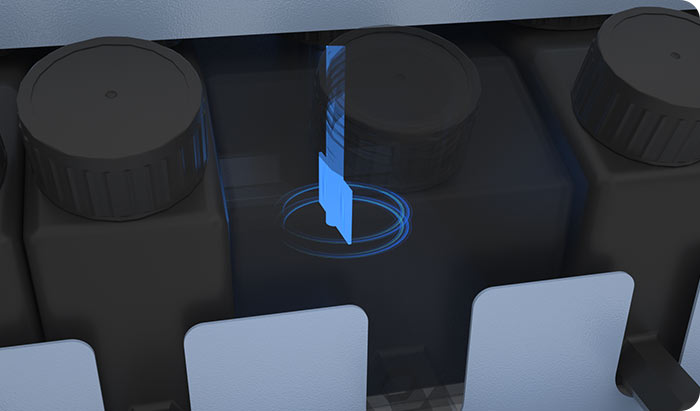

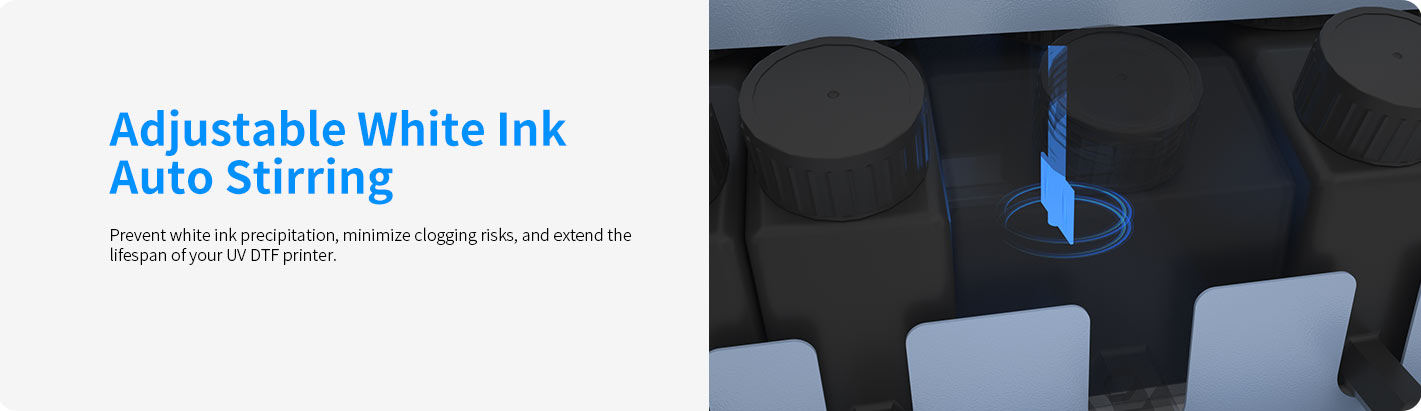

Adjustable White Ink
Auto Stirring
Prevent white ink precipitation, minimize clogging risks, and extend the
lifespan of your UV DTF printer.

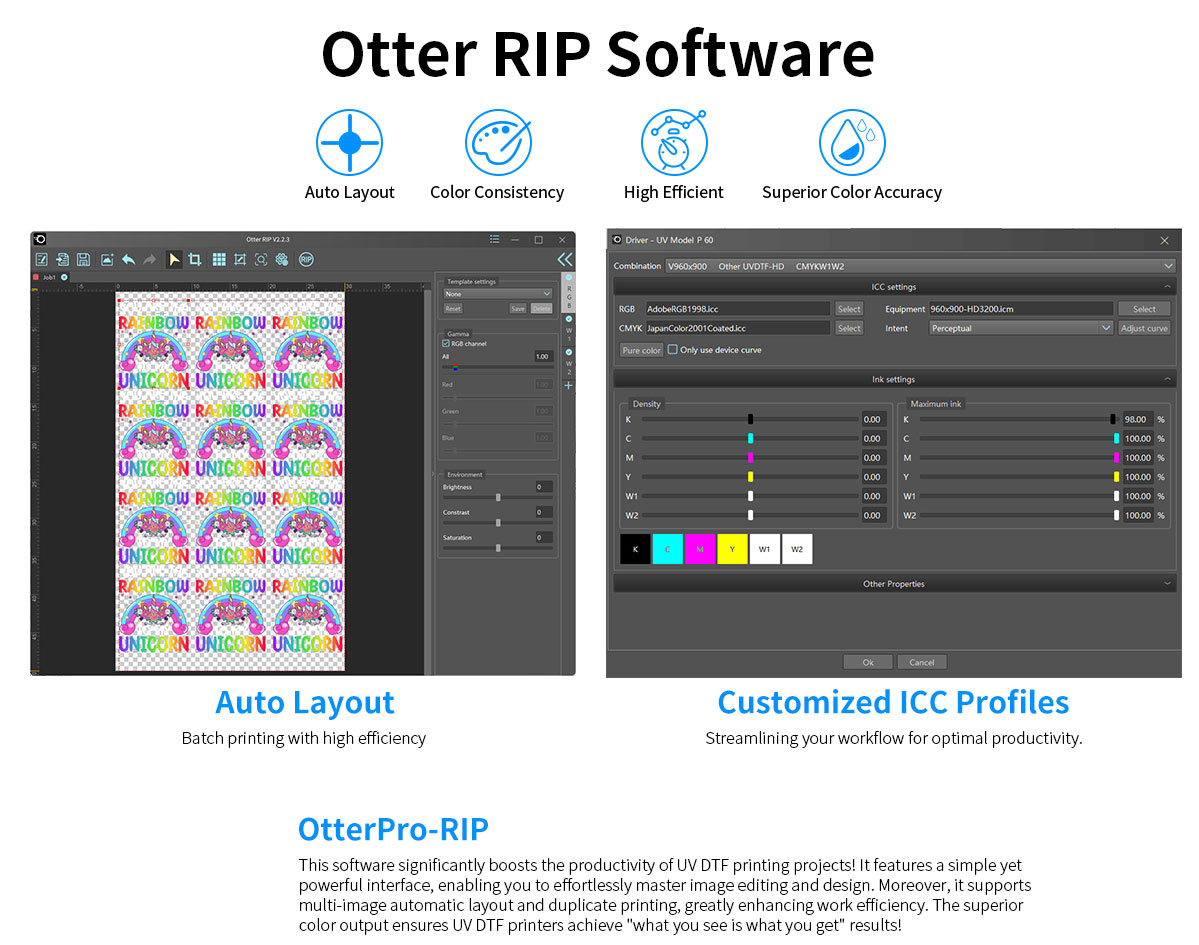

OtterPro RIP SOFTWARE
Auto Layout
Color Consistency
High Efficient
Superior Color Accuracy
Auto Layout
Batch printing with high efficiency
Customized ICC Profiles
Streamlining your workflow for optimal productivity.
Multi-language System
Available in eight languages (with more on the way), including
Chinese, English, French, German, Italian, Polish, Portuguese
and Spanish, we're dedicated to making this RIP software faster, more
accessible and efficient for users around the globe.
OtterPro-RIP
This software significantly boosts the productivity of DTF printing projects! It features a simple yet
powerful interface, enabling you to effortlessly master image editing and design. Moreover, it supports
multi-image automatic layout and duplicate printing, greatly enhancing work efficiency. The superior
color output ensures DTF printers achieve "what you see is what you get" results!

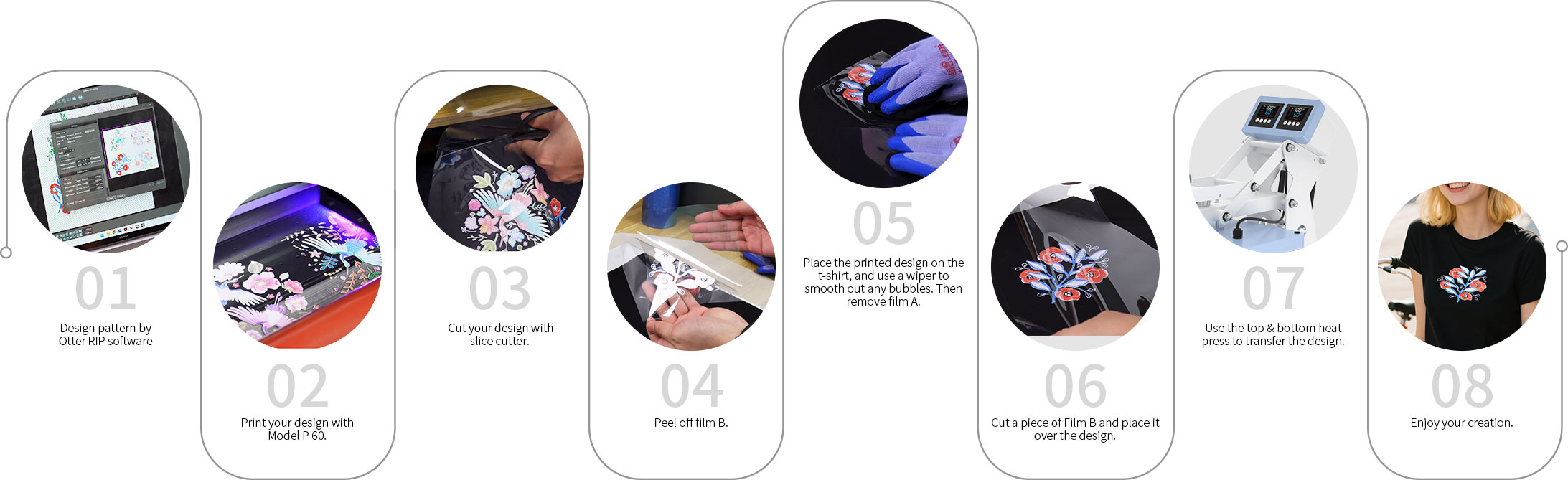

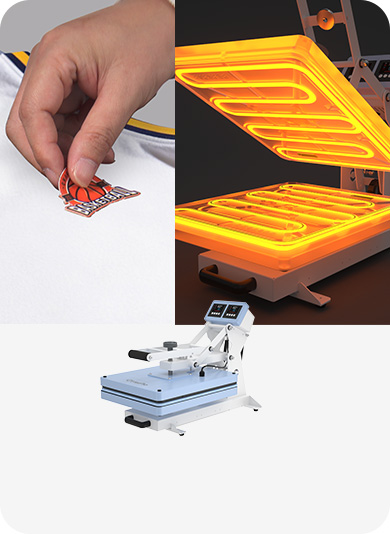

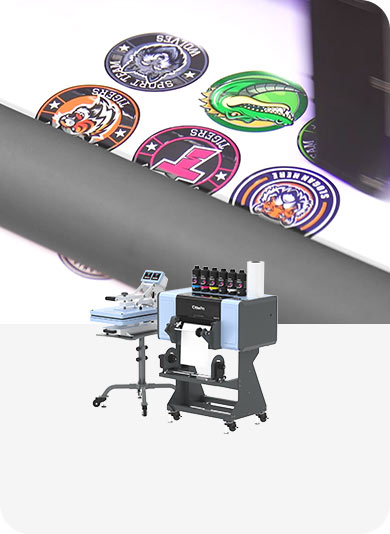

How to Transfer 3D SOFT UV DTF Design on T-shirt?
Transfer 64 T-shirt in Just
1 Hour!
printer.

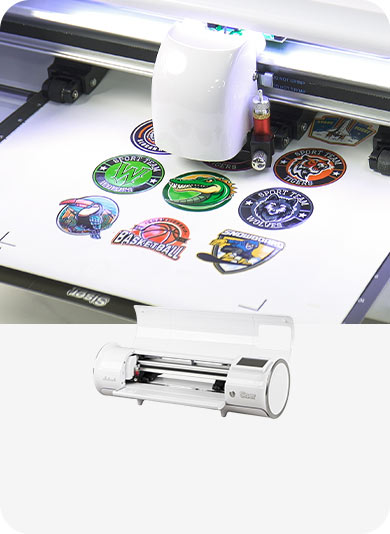

cutter.
bottom dual control heat press.
APPLICATION
Blended Fabric
100% Cotton
Polyester
Faux Leather
Achieve stuning 3D raised effect with Model P 30 3D UV DTF printer. Elevate
your garment business with realistic, eye-catching design effortlessly.
- Model No.
- MODELP60LB
- Nozzle Resolution
- 300npi 600npi
- Printhead
- i1600 E1 x3
- Print Speed
- 960*900dpi（6pass） Print Speed: 3.5-5.0m2/H
960*1200dpi（8pass） Print Speed: 2.5-3.5m2/H - Voltage
- 110V/220V±10% 50Hz-60Hz
- Print Mode
- Uni-direction / Bi-direction
- Power
- 330W 5A-10A
- Operating Environment
- Temperature:15-30℃
Humidity: 35-65%(no condensation) - Language Options
(Control Panel) - Chinese/English
- Ink Stirring System
- Auto white ink stirring
- Printer Software
- OtterPro C 60 UV DTF
- Printhead Maintenance
- Automatic cleaning,ink scraping,moisturizing
- Design Software
- OtterPro RIP
- Heating System
- Adjustable heating rollers
- Language Options
(Software) - Chinese/English/French/German/
Italian/Polish/Portuguese/Spanish - Connection Method
- Gabit Ethernet Port
(PC must have Gigabit Ethernet Card) - Ink Type
- UV DTF Ink
- Inspection System
- Low ink alerts / Film-out detection

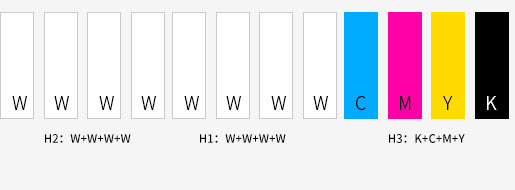

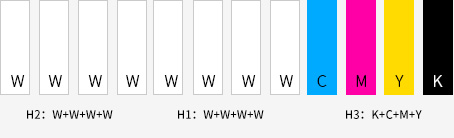

- Ink Color
- H1：W+W+W+W
H2：W+W+W+W
H3：K+C+M+Y - System Requirements
- Window 7 or above (macOS system is not supported)
- Printing Method
- A complete white ink, color, varnish
hierarchical order printing - Supported Formats
- BMP, JPG, PNG, TIFF, TIF, PDF
- Print Thickness
- 0-3 mm / 0-0.078 in
- Printer Specification
- 170 x 107 x 154 cm / 66.9 x 42.1 x 60.6 in
280kg / 617lb - Print Width
- 0-620 mm / 0-24.4 in
- Package Dimension
- 148 x 220 x 110 cm / 58.2 x 86.6 x 43.3 in
350kg / 771lb - NOTE:
The UV DTF printer is covered by a 2-year limited warranty. Additionally, parts that come in contact with ink, including ink cartridges, printheads, wiper blades, and other consumable parts, are also covered under warranty with an extra cost.
