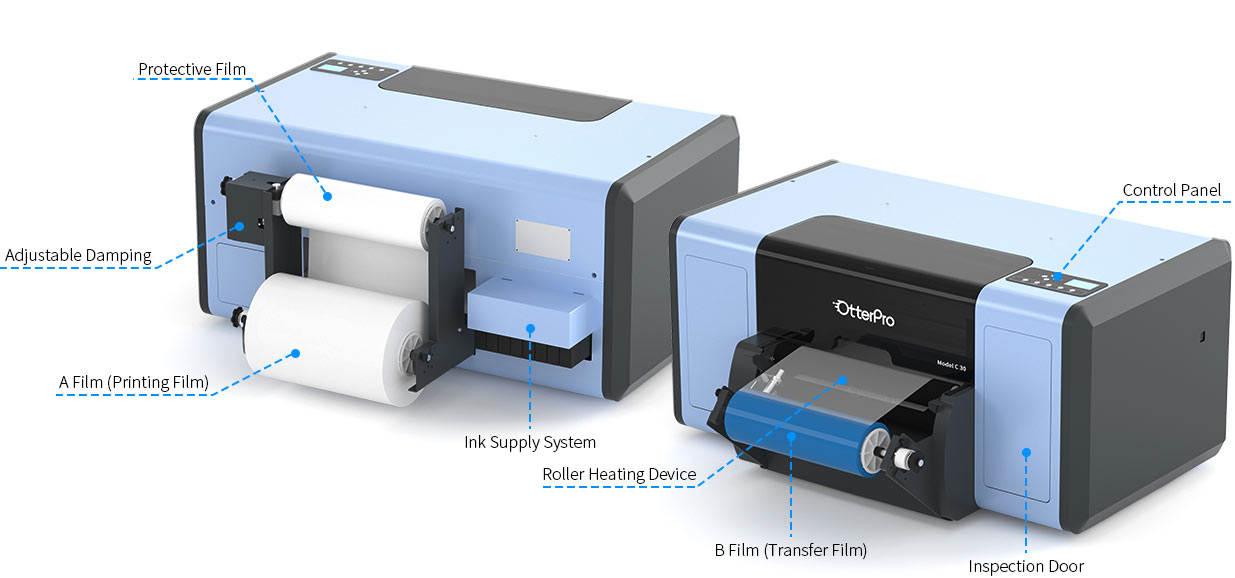

UV Model C 30

OTTERPRO UV DTF PRINTER

UV MODEL C 30 Full Video

EPSON I3200-U1 HD

1 pc

Ideal Width for a Perfect Pint

0-300mm/11.8in Max

Convenient

Simple operation
Stable performance
Easy to maintain
One-stop consumables

Safe & Intelligent

White ink automatic circulation
Automatic cleaning system
Stirring system
Alarm system

High Efficiency

Adjustable heating roller
Built-in suction system
Multi-language RIP software

Why Choose the Model C 30?

UV DTF printing is a technology that prints on film, laminates it with a backing film, and turns your designs into permanent stickers. No
heat press machine is needed, and these stickers can be applied to almost any hard, smooth, or even irregular surface!

Desktop Printer

Scratch Resistance

3D Relief Effect

No Cutter Needed

No Heat Press Required

No MOQ

No Color Limitation

Washable

Cylindrical & Curved Shapes

Smooth & Hard Surfaces

Gift Wrapping

Gift Personalization

Small-volume Business

Retail Packaging

OtterPro UV DTF Printer

EPSON I3200-U1 HD

High precision of printhead

Unique printhead design with 8 colors
(K+C+M+Y+W1+W2+V1+V2) makes OTTERPRO
UVDTF Printer with higher precision,
accurate alignment, rich and vivid
colors.

Bubble-free
Heating System

No bubbles, no wrinkles on your UV DTF stickers! With adjustable temp.
dual heating rollers to ensure precise and uniform heat distribution to
achieve an excellent laminating effect.

Built-in UV LED Lights

The built-in ultraviolet lights enable
simultaneous printing and curing,
and are ready for lamination!

Auto White Ink
Circulation

Equipped with two peristaltic pumps, this system keeps the ink in
constant motion, reducing the risk of white ink clogging and extending
the service life of your UV DTF printer.

High Resolution

Compatible with Epson i3200 u1 printhead with 600 dpi
high-density resolution, ensures high color reproduction
and high-quality prints.

Space-saving Design

The Model C 30 is a desktop UV DTF printer that's compact
enough to fit seamlessly into any workspace, no extra
stand required.

Ink Supply System

UV inks are sensitive to light, and the housing of the UV
DTF ink supply system is specially designed in black to
protect the ink from light exposure.

Print Width

The maximum print width of Model C 30 is 30cm, it’s a
popular print width for UV printing.

Mute Guide Rail

The upgraded guidet rail ensures high precision and
stable performance with minimal noise.

Magnetic Inspection Door

The magnetic door allows for easy maintenance and
access without dismantling the machine.

Waste Ink Alarm

It comes with a liquid-level switch that alerts you when it's
time to pour out waste ink.

Adjustable vacuum
suction platform

With an adjustable vacuum suction platform, the film adheres
firmly to the platform, ensuring a smooth printing process.

OtterPro RIP SOFTWARE

Auto Layout

Color Consistency

High Efficient

Superior Color Accuracy

Auto Layout

Batch printing with high efficiency

Customized ICC Profiles

Streamlining your workflow for optimal productivity.

Multi-language System

Available in eight languages (with more on the way), including
Chinese, English, French, German, Italian, Polish, Portuguese
and Spanish, we're dedicated to making this RIP software faster, more
accessible and efficient for users around the globe.

OtterPro-RIP

This software significantly boosts the productivity of DTF printing projects! It features a simple yet
powerful interface, enabling you to effortlessly master image editing and design. Moreover, it supports
multi-image automatic layout and duplicate printing, greatly enhancing work efficiency. The superior
color output ensures DTF printers achieve "what you see is what you get" results!

How to Apply UV DTF Sticker?

Watch the video

WIDE APPLICATION

The crystal stickers can be applied to wood, metal, plastic, glass, acrylic, paper and almost any smooth, hard, cylindrical object, and more!

Model No.
MODELC30LB
Nozzle Resolution
300npi 600npi
Printhead
Epson i3200-U1 HD x1
(8 Colors)
Print Speed
960*600dpi（4pass） Print Speed: 1.54m²/H
960*900dpi（6pass） Print Speed: 1.04m²/H
960*1200dpi（8pass） Print Speed: 0.74 m²/H
Voltage
110V/220V±10% 50Hz-60Hz
Print Mode
Uni-direction / Bi-direction
Power
410W 5A-10A
Operating Environment
Temperature:15-30℃
Humidity: 35-65%(no condensation)
Language Options
(Control Panel)
Chinese/English
Ink Stirring System
White ink automatic circulation
Printer Software
OtterPro C 30 UV DTF
Printhead Maintenance
Automatic cleaning,ink scraping,moisturizing
Design Software
OtterPro RIP
Heating System
Adjustable heating rollers
Language Options
(Software)
Chinese/English/French/German/
Italian/Polish/Portuguese/Spanish
Connection Method
Gabit Ethernet Port
(PC must have Gigabit Ethernet Card)
Ink Type
UV DTF Ink
System Requirements
Window 7 or above (macOS system is not supported)
Ink Color
K+C+M+Y+W1+W2+V1+V2
Supported Formats
BMP, JPG, PNG, TIFF, TIF, PDF
Printing Method
A complete white ink, color, varnish
hierarchical order printing
Printer Specification
(Base frame not included)
96 x 98 x 45 cm / 37.7 x 38.5 x 17.7 in
75kg / 165lb
Print Width
0-300 mm / 0-11.8 in
Package Dimension
112 x 112 x 63 cm / 44 x 44 x 24.8 in
95kg / 209lb
NOTE:
The UV DTF printer is covered by a 2-year limited warranty. Additionally, parts that come in contact with ink, including ink cartridges, printheads, wiper blades,and other consumable parts, are also covered under warranty with an extra cost.
