3D UV DTF
Printer
3D Raised Texture Logo Patch for Sportware, Cap, Bag & More
Blended Fabric
100% Cotton
Polyester
Faux Leather
WATCH VIDEO
i3200-U1 HD
1 PCS
Ideal Width for a Perfect Pint
0-300 mm / 0-11.8 in MAX
Convenient
Simple operation
Stable performance
Easy to maintain
One-stop consumables
Alert System
Low ink alerts
Film-out detection
Auto System
White ink circulation system
Suction system
Automatic cleaning

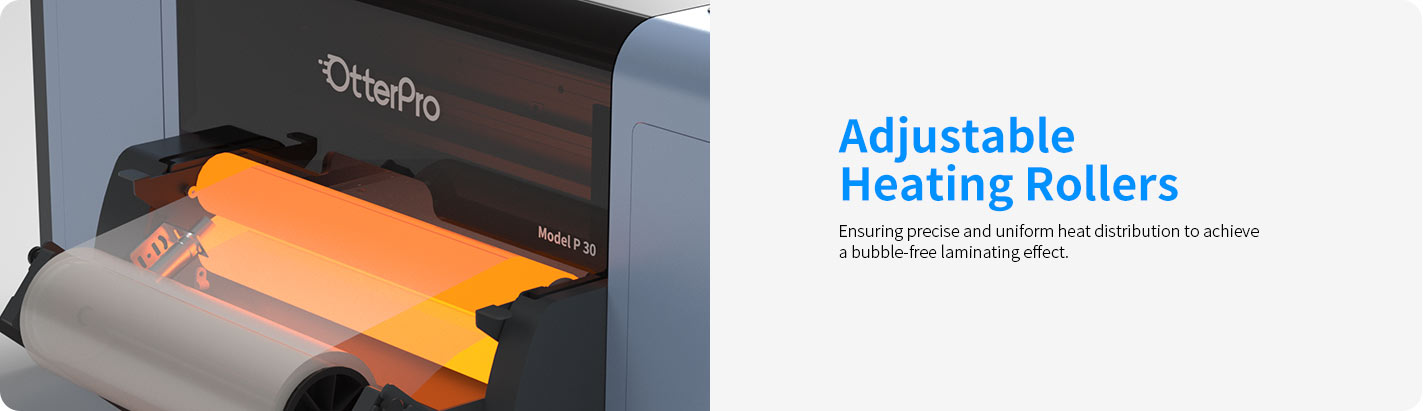

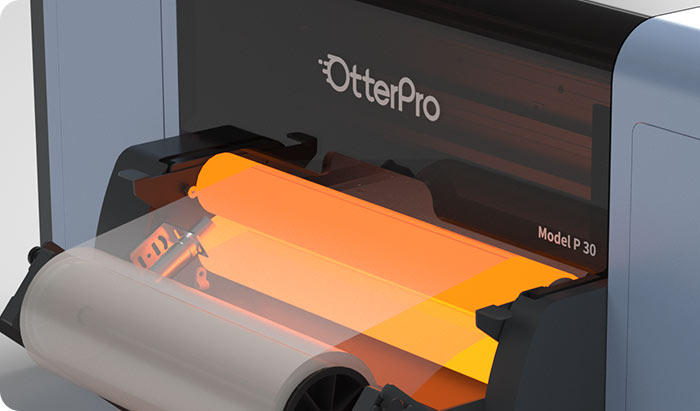

Adjustable heating rollers

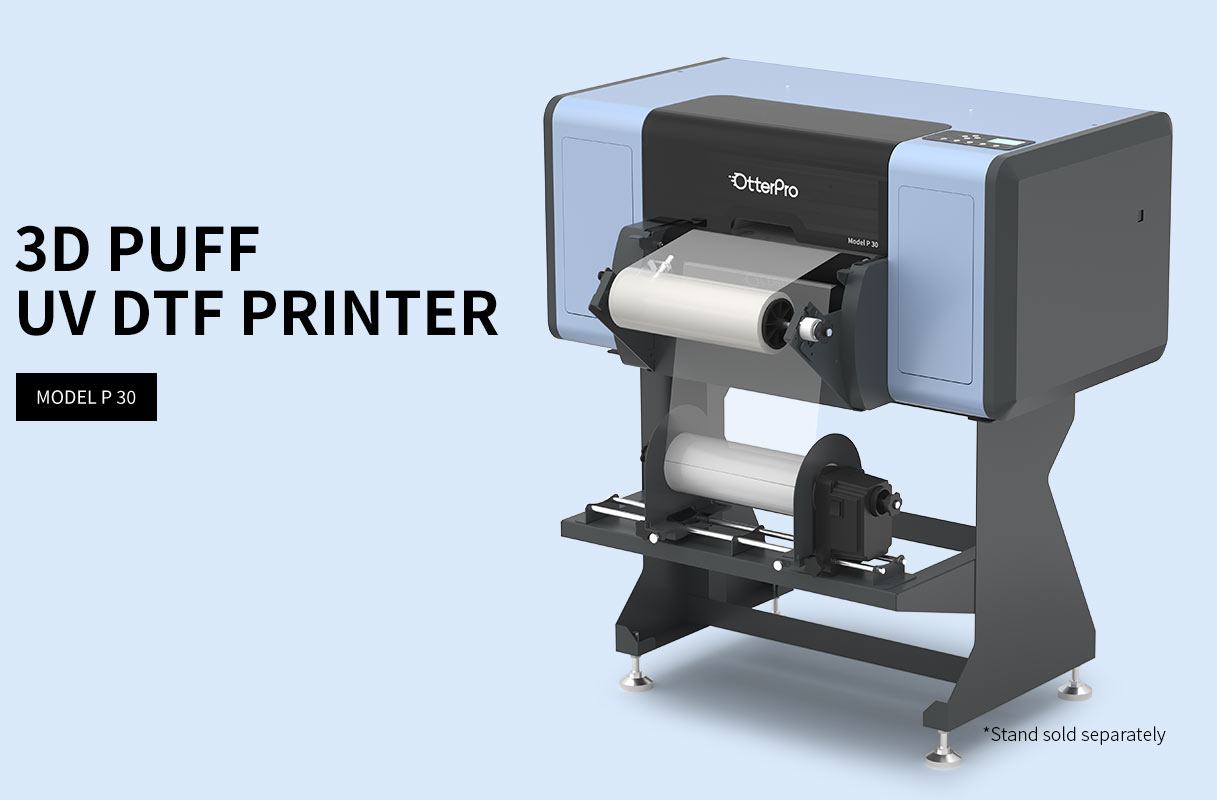

Why Choose the Model P 30?
1 printer 2 solutions! This is a 2-in-1 UV DTF printer, there are 2 solutions available for both soft fabrics and hard substrates.
Simply choose the right one for your business, pair it with our specialized ink and film, and achieve exceptional results.

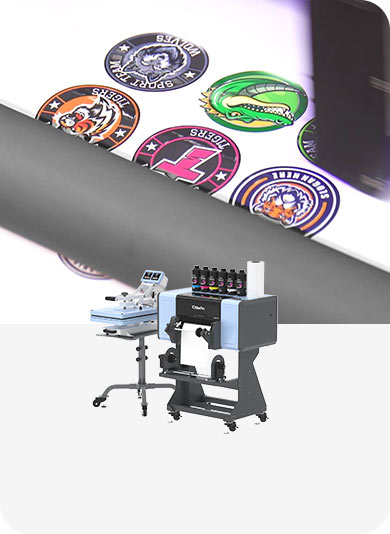

One-Stop Solution for Silicon-Like 3D UV DTF
Logo Patches on Textiles

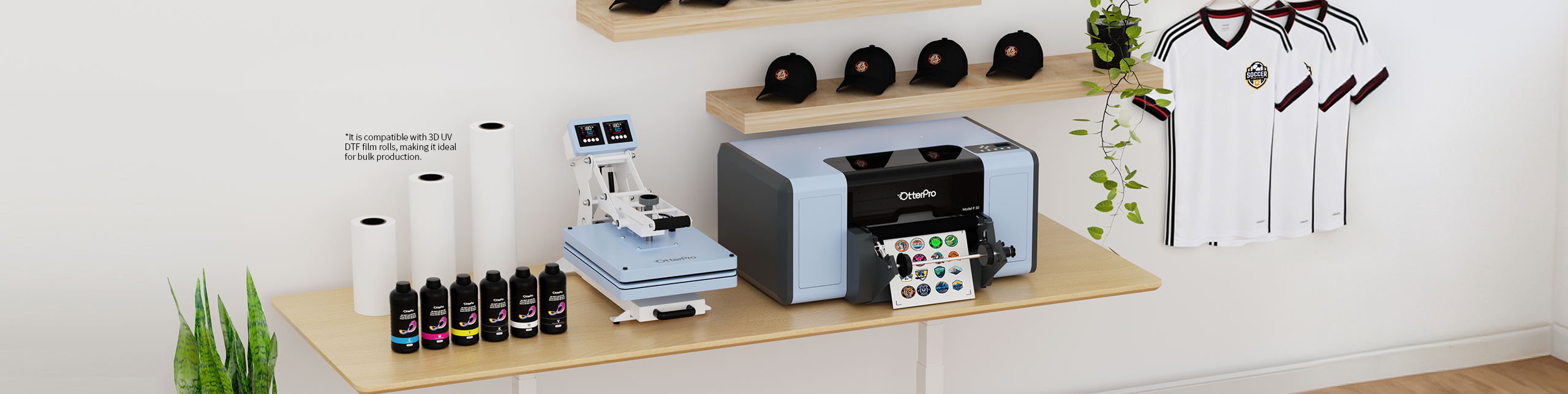

Ready to Start Your Own POD? Kickstart It Right From Home.
Compatible with
Most Fabrics
3D Raised Texture
Soft & Flexible
Durable &
Wash-resistant
Vivid Color Transfer
Waterproof

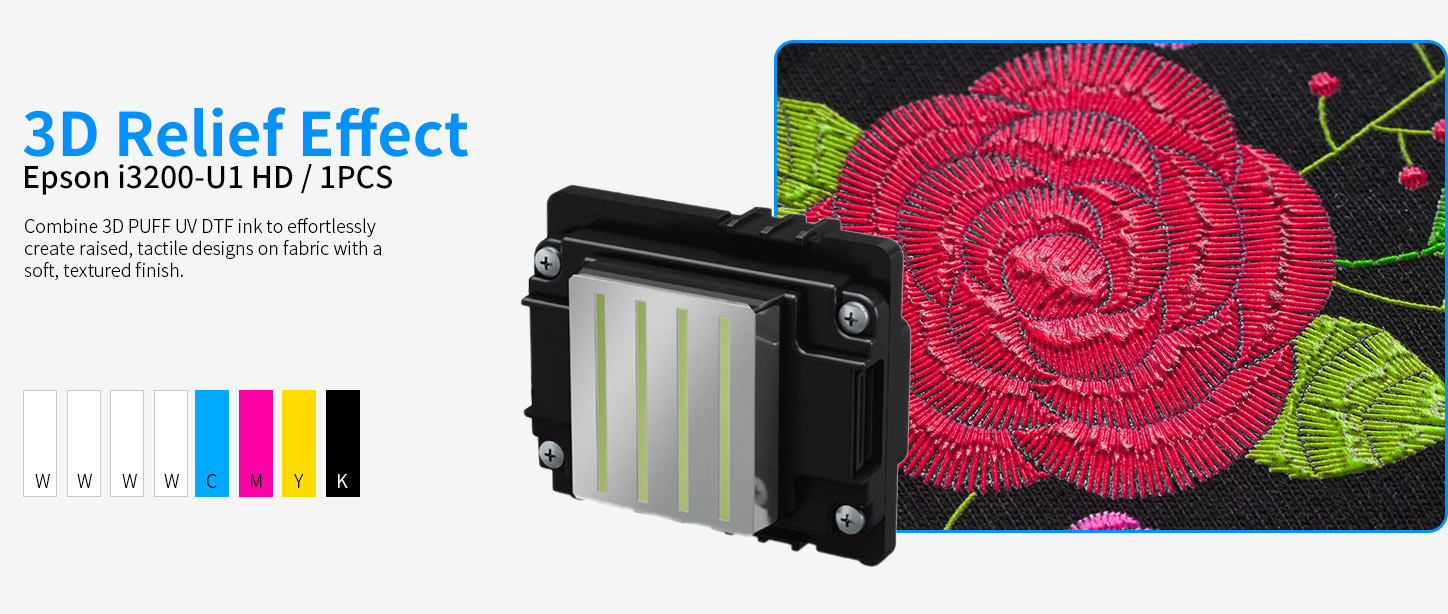

3D Relief Effect
i3200-U1 HD / 1 PCS
Combine 3D UV DTF ink to effortlessly create raised, tactile
designs on fabric with a soft, textured finish.

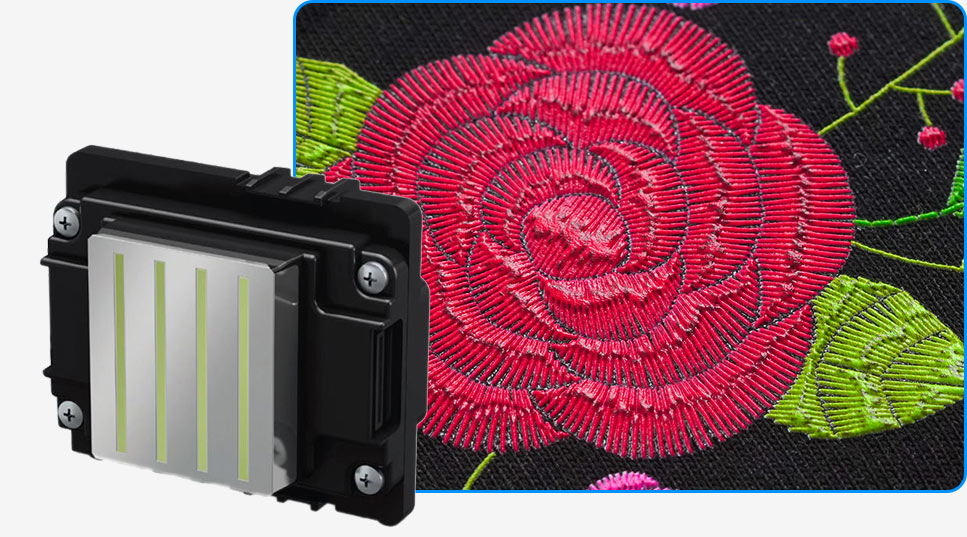

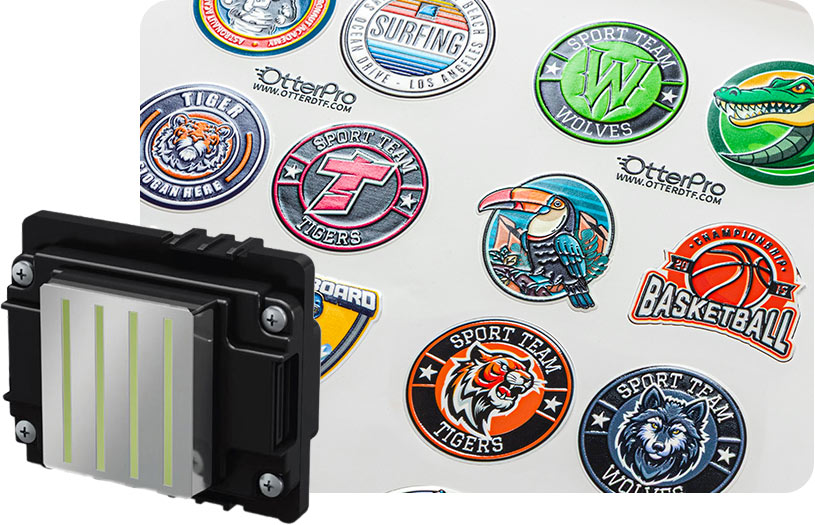

High Resolution
Compatible with i3200 U1 printhead with 600 dpi high-density
resolution, ensures high color reproduction and high-quality prints.

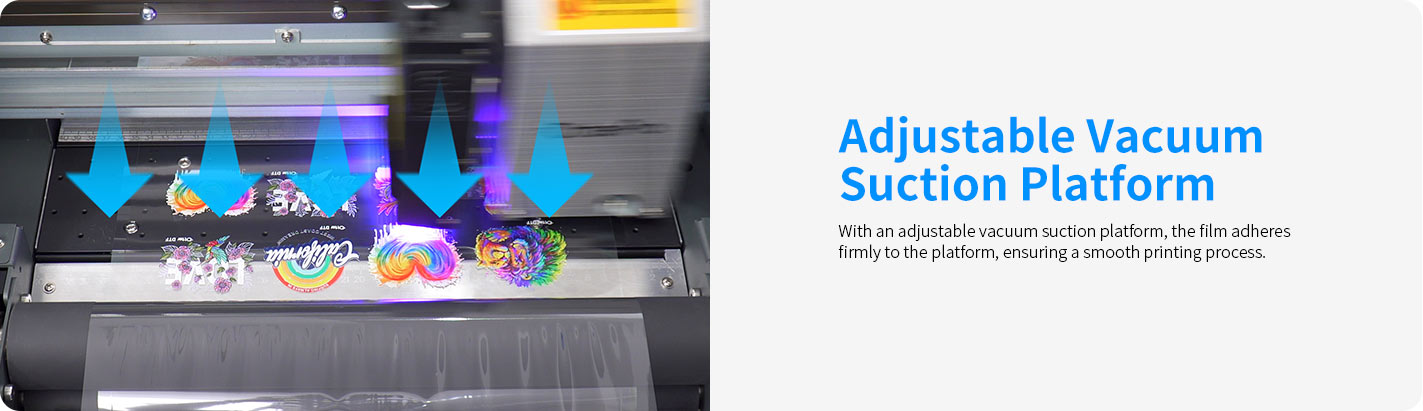

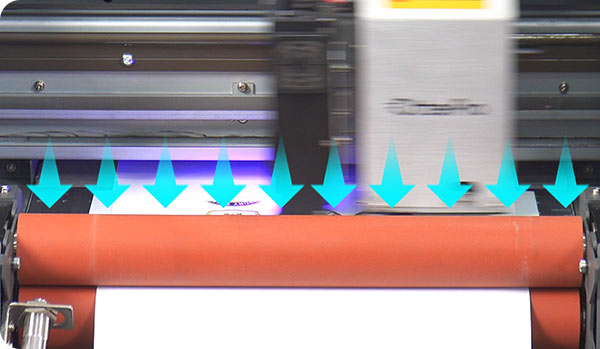

Adjustable Vacuum
Suction Platform
With an adjustable vacuum suction platform, the film adheres
firmly to the platform, ensuring a smooth printing process.

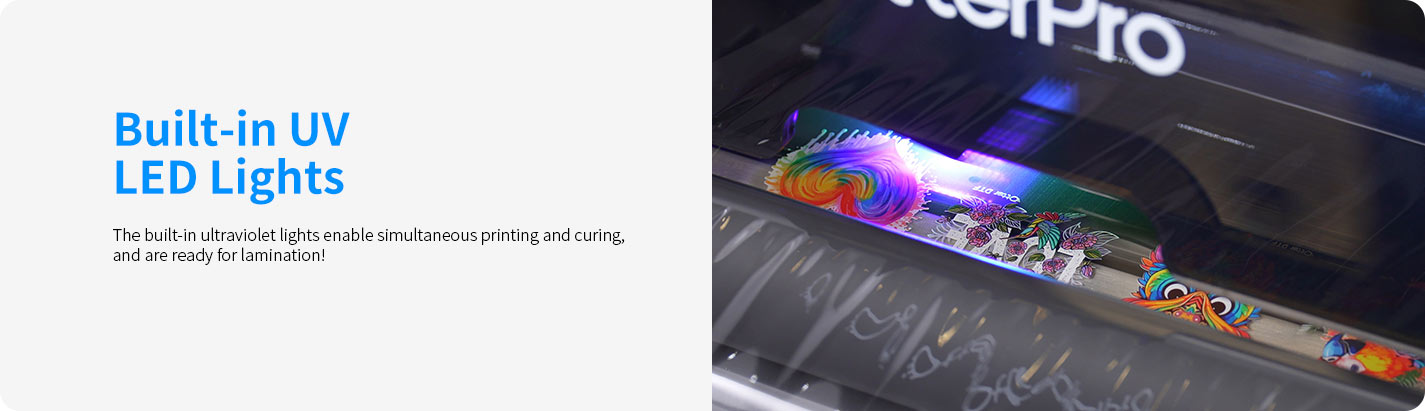

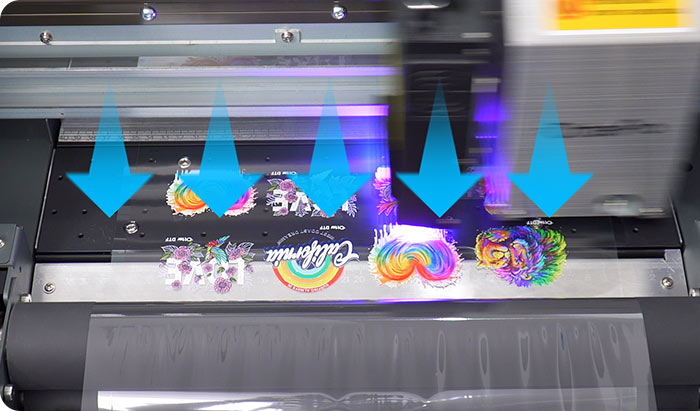

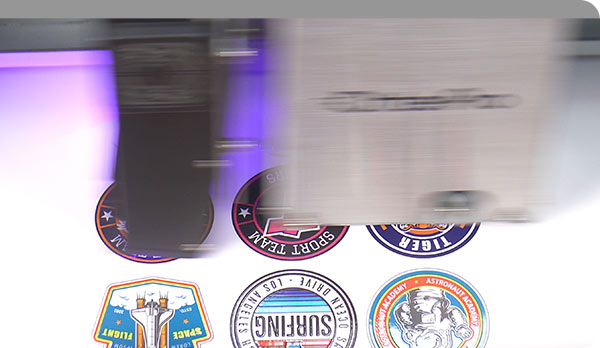

Built-in UV
LED Lights
The built-in ultraviolet lights enable
simultaneous printing and curing,
and are ready for lamination!

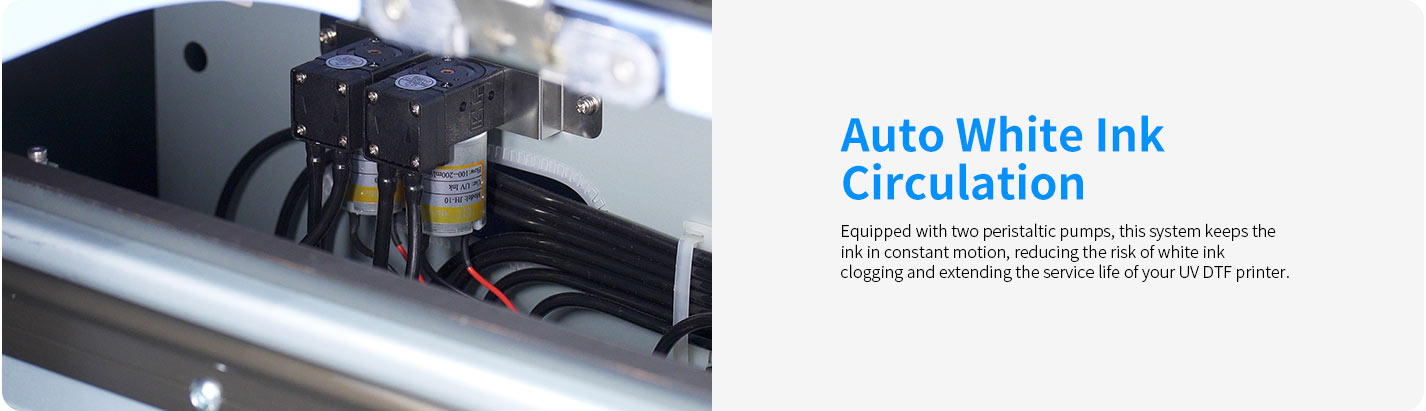

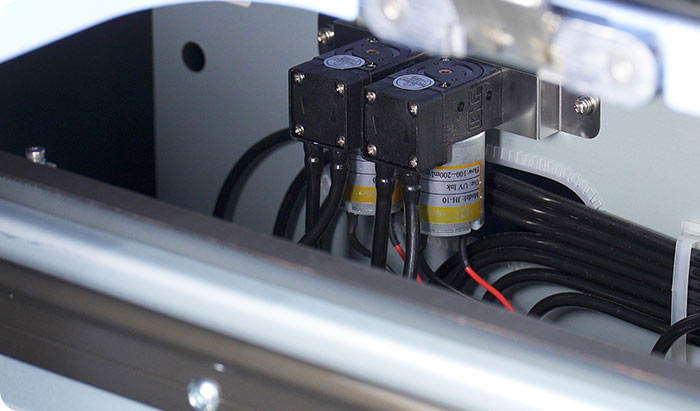

Auto White Ink
Circulation
Equipped with two peristaltic pumps, this system keeps the ink
in constant motion, reducing the risk of white ink clogging and
extending the service life of your UV DTF printer.

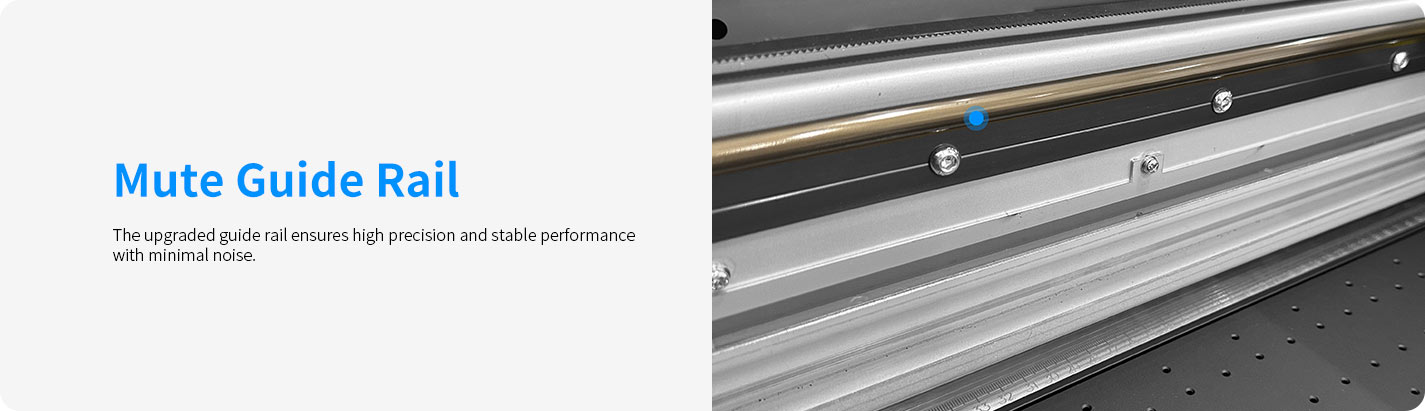

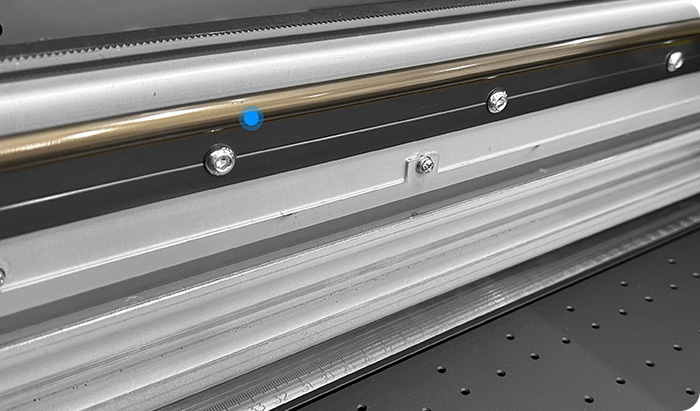

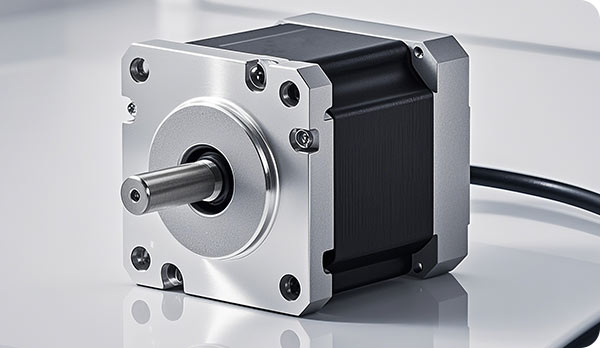

Mute Guide Rail
The upgraded guide rail ensures high precision and stable
performance with minimal noise.

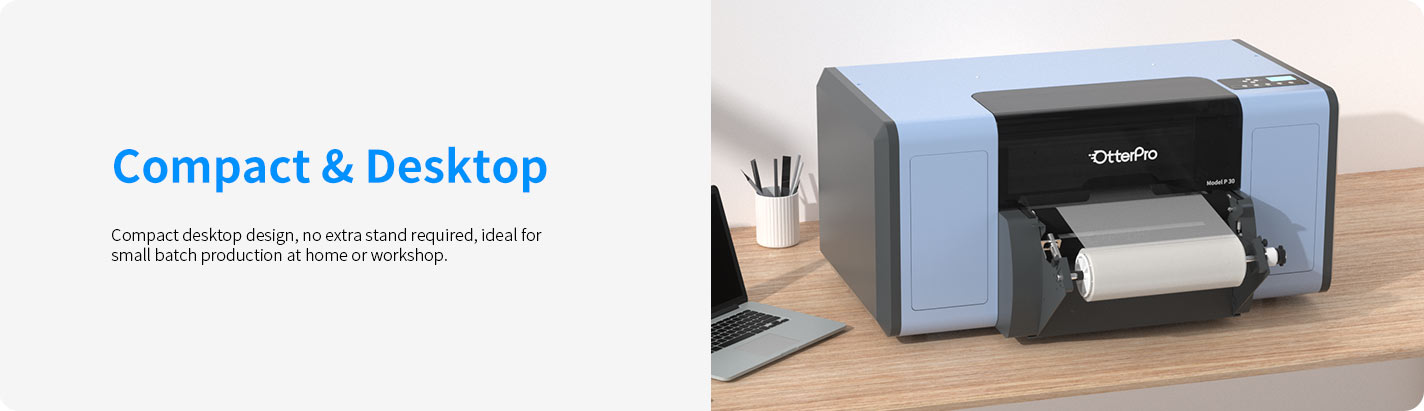

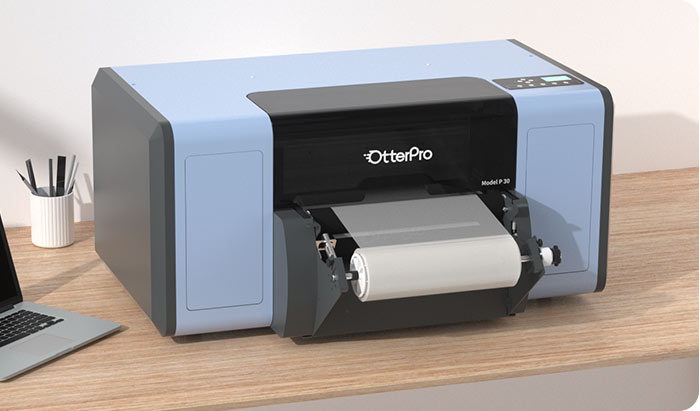

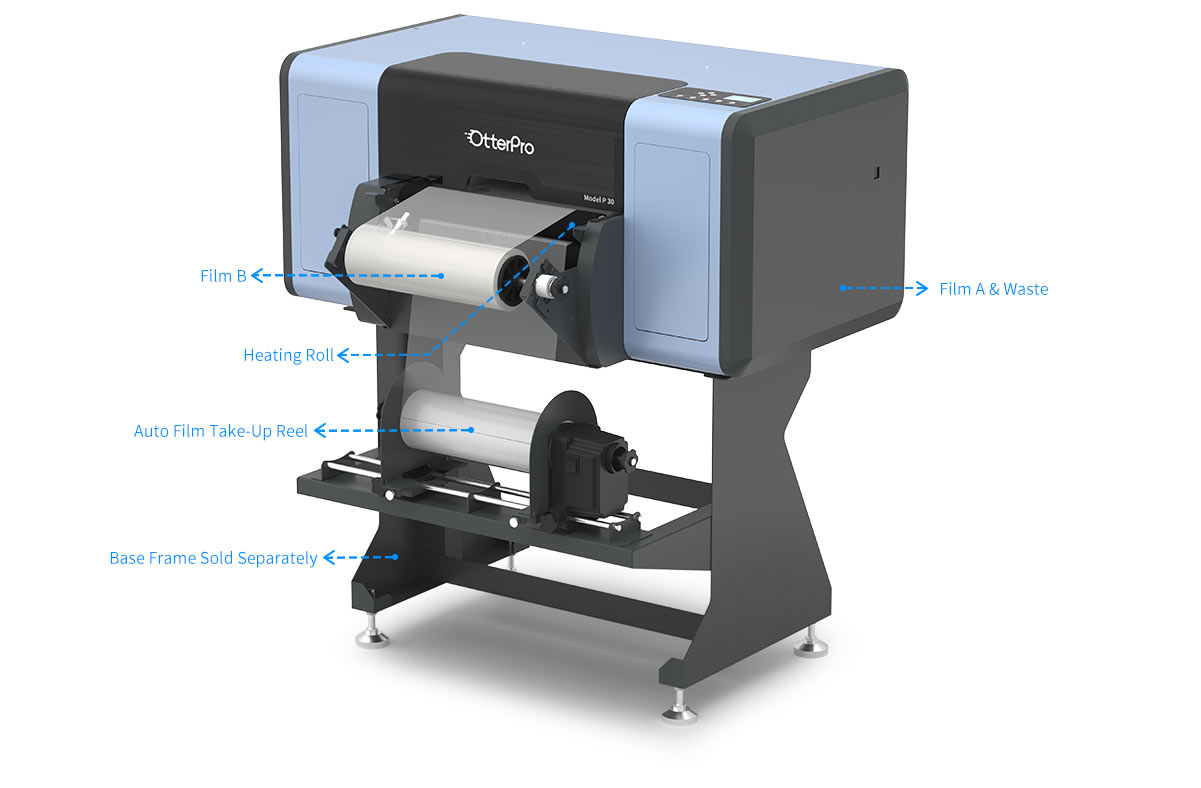

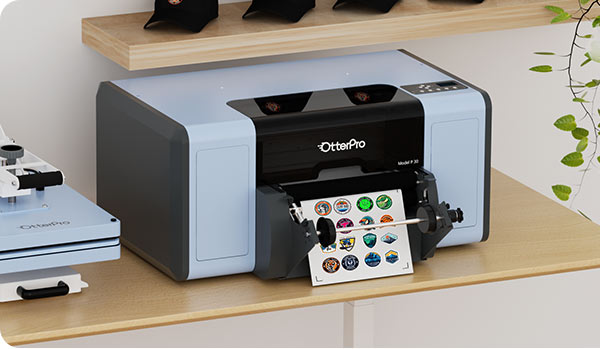

Compact & Desktop
Compact desktop design, no extra stand required, ideal for
small batch production at home or workshop.

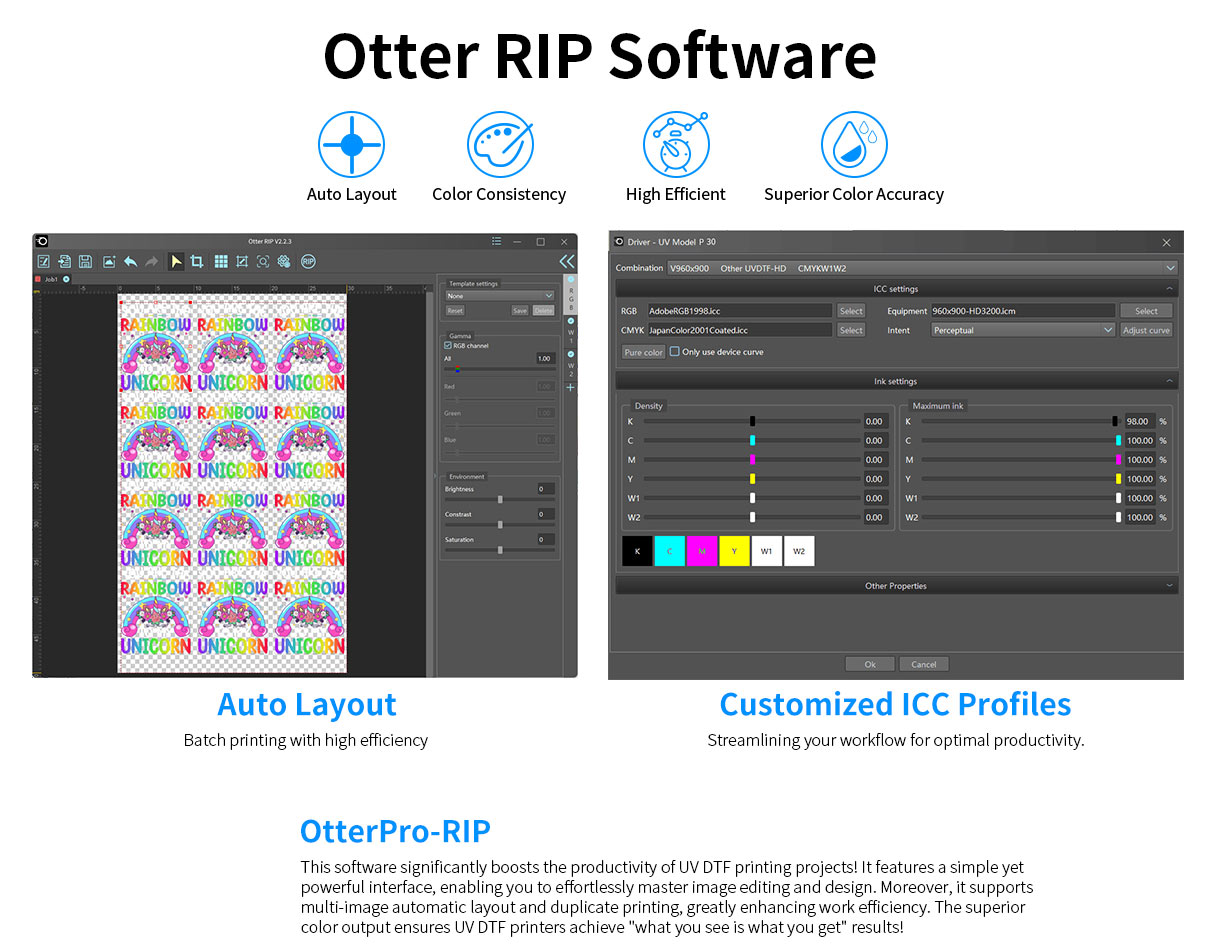

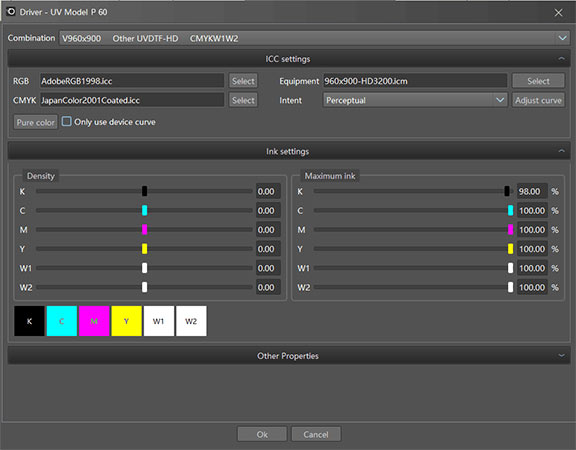

OtterPro RIP SOFTWARE
Auto Layout
Color Consistency
High Efficient
Superior Color Accuracy
Auto Layout
Batch printing with high efficiency
Customized ICC Profiles
Streamlining your workflow for optimal productivity.
Multi-language System
Available in eight languages (with more on the way), including
Chinese, English, French, German, Italian, Polish, Portuguese
and Spanish, we're dedicated to making this RIP software faster, more
accessible and efficient for users around the globe.

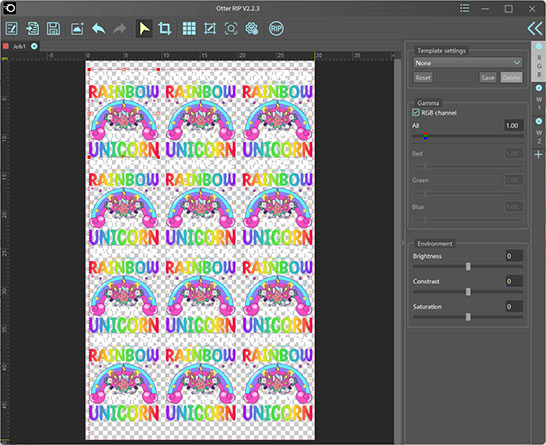

OtterPro-RIP
This software significantly boosts the productivity of DTF printing projects! It features a simple yet
powerful interface, enabling you to effortlessly master image editing and design. Moreover, it supports
multi-image automatic layout and duplicate printing, greatly enhancing work efficiency. The superior
color output ensures DTF printers achieve "what you see is what you get" results!

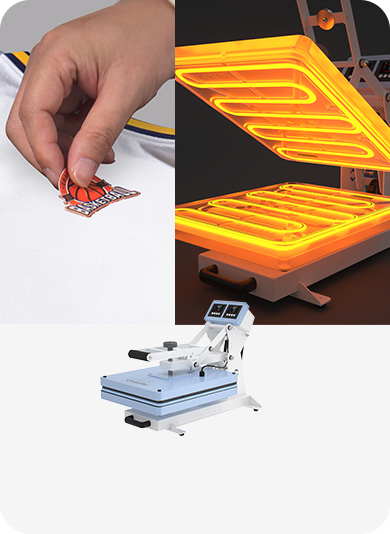

How to Transfer 3D SOFT UV DTF Design on T-shirt?
Transfer 64 T-shirt in Just
1 Hour!
printer.

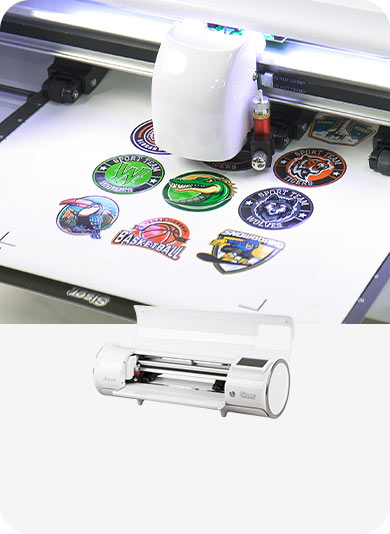

cutter.
bottom dual control heat press.
APPLICATION
Blended Fabric
100% Cotton
Polyester
Faux Leather
Achieve stuning 3D raised effect with Model P 30 3D UV DTF printer. Elevate
your garment business with realistic, eye-catching design effortlessly.
- Model No.
- MODELP30LB
- Nozzle Resolution
- 300npi 600npi
- Printhead
- i3200-U1 HD x1
(8 Colores) - Print Speed
- 960*600dpi（4pass） Print Speed: 1.54m2/H
960*900dpi（6pass） Print Speed: 1.04m2/H
960*1200dpi（8pass） Print Speed: 0.74m2/H - Voltage
- 110V/220V±10% 50Hz-60Hz
- Print Mode
- Uni-direction / Bi-direction
- Power
- 410W 5A-10A
- Operating Environment
- Temperature:15-30℃
Humidity: 35-65%(no condensation) - Language Options
(Control Panel) - Chinese/English
- Ink Stirring System
- Auto white ink stirring
- Printer Software
- OtterPro C 30 UV DTF
- Printhead Maintenance
- Automatic cleaning,ink scraping,moisturizing
- Design Software
- OtterPro RIP
- Heating System
- Adjustable heating rollers
- Language Options
(Software) - Chinese/English/French/German/
Italian/Polish/Portuguese/Spanish - Connection Method
- Gabit Ethernet Port
(PC must have Gigabit Ethernet Card) - Ink Type
- UV DTF Ink
- System Requirements
- Window 7 or above (macOS system is not supported)

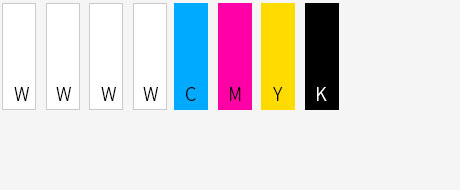

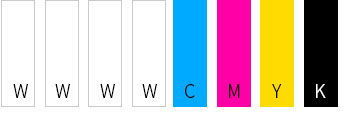

- Ink Color
- K+C+M+Y+W+W+W+W
- Supported Formats
- BMP, JPG, PNG, TIFF, TIF, PDF
- Printing Method
- A complete white ink, color, varnish

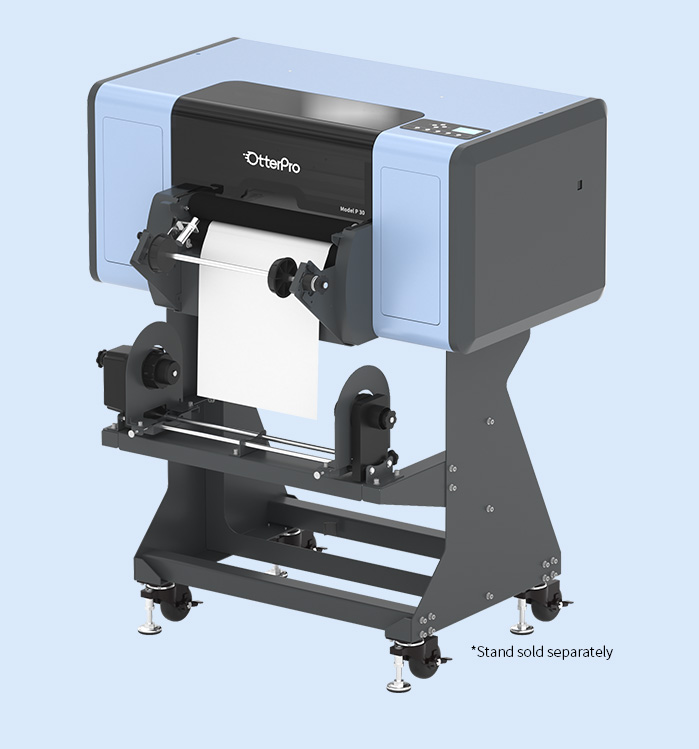

hierarchical order printing - Printer Specification

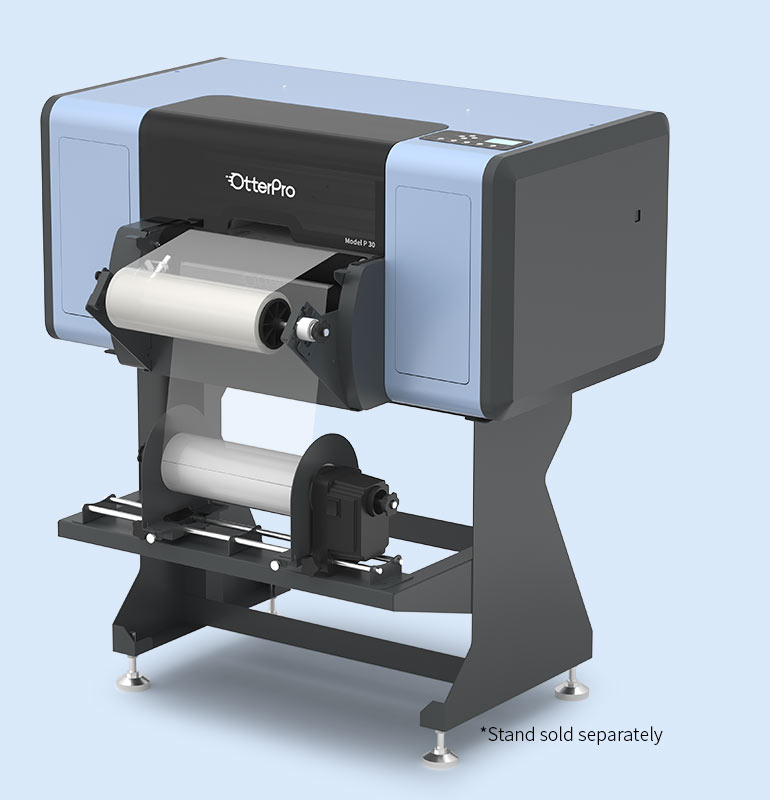

(Base frame not included) - 98 x 96 x 45 cm / 37.7 x 38.5 x 17.7 in
75kg / 165lb - Print Width
- 0-300 mm / 0-11.8 in
- Package Dimension
- 112 x 112 x 63 cm / 44 x 44 x 24.8 in
95kg / 209lb - NOTE:
The UV DTF printer is covered by a 2-year limited warranty. Additionally, parts that come in contact with ink, including ink cartridges, printheads, wiper blades, and other consumable parts, are also covered under warranty with an extra cost.
